Benzoxazine

View:329 –Addtime:2011-09-30

BOQING

 Benzoxazine resin ORE-0700

 Benzoxazine resin ORE-0700 is the dehydration, condensation, closed-loop reaction products of bisphenol A, amines and formaldehyde.Benzoxazine resin features a unique combination of excellent heat resistance, flame retardant, mechanical properties, low water absorption, simple curing process, no volatile release in polymerization process and dimensional stability, is widely used in CCL industry.

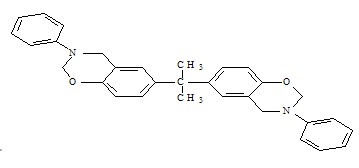

Structural formula:

Product General Specification:

Appearance

Light yellow liquid

Viscosity (25℃ CPS)

800-2500

Solid content

68.5-71.5

Free phenol content (%)

<4

N. content (%)

6.0-7.0

Halogen content (ppm)

<50

Water content (%)

<0.5

Cured TG (℃)

             175

Recommended dosage:    20~40% (mass ratio) in FR-4 hardboard formula

Application

ORE-0700 is compatible with general phenolic resin, melamine modified phenolic resin and phosphorus epoxy resin.Benzoxazine resin ORE-0700 is widely used in CCL industry.

By adding Benzoxazine resin ORE-0700 can significantly improve the heat resistance, mechanical strength, dimensional stability and peel strength of CCL

Packaging and Storage:

200Kg / barrel, in the shade, can be stored for 12 months. It is a normal phenomenon for solid precipitation. After heating at 80-90 ℃, the product can be completely transparent, does not affect use.

The data described herein is not regular value

 we reserve the right to change specifications without notice.

We recommend that the prospective user determines the suitability of our materials before use

We are not guarantee that the use of any product herein will not infringe any patent

Any product herein is industrial use. For medical or other special purposes, we recommend that the prospective user determines the safety of our product before use. Do not inject into the human body.

Tel: 0510-88277782         Fax: 0510-88275782        Website: www.china-innotek.com
